PV14-(amp)A15 1500Vdc 14x51mm

Class of Operation: gPV

Rating:

Amps: 5-32A

Volts: 1500Vdc

Interrupting Rating: 30kA@1500Vdc

Standards/Approvals for Reference:

2 UL listed: JFGA.E365873;

2 REACH declaration available upon request;

2 CE;

2 RoHS compliant.

Description: CHNBEL series of 14x51 mm, 1500Vdc PV fuses are for protecting and isolating photovoltaic strings,

are applied in combiner boxes, inverters.

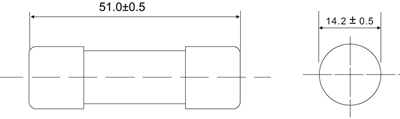

Dimensions(mm)

Catalogue Numbers
